Cast Iron

Description

Cast Iron Ball Valve. Anti-blow-out stem. Approved to EN13774 (gas distribution).

Connection

Flanged mounting to PN16

Pressure

16 Bar Rated

Temperature

-10°C to +60°C

Description

Cast Iron PN16 Gate Valve. Bronze Trim. Stainless Steel Stem.

Stock Availability

Sizes 14"+ subject to factory lead time.

Connection

Flanged PN16

Approvals/ other

BS 5150
CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Cast Iron Gate Valve. Non rising stem.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

Cast Iron Gate Valve. Class 125 Rated. Non rising stem. Conforms to ASME B16.10 & MSS SP-70.

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125 (B16.1)

Pressure

13.8 Bar Rated

Temperature

-10°C to +230°C

Description

Cast Iron Flanged Gate Valve. Bronze Trim. Stainless Steel Stem.

Connection

Flanged Table E & D

Approvals/ other

BS 3464

Pressure

10 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Cast Iron Rising Stem Gate Valve

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

ANSI 125 Cast Iron Rising Stem Gate Valve

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125 (B16.1)

Pressure

13.8 Bar Rated

Temperature

-10°C to +230°C

Description

PN16 Cast Iron Rising Stem Gate Valve

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting to PN16 Only

Pressure

16 Bar Rated

Temperature

-10°C to +230°C

Description

PN16 Cast Iron Globe Valve. Bronze Trim. Stainless Steel Stem.

Connection

Flange Mounting PN16 only

Approvals/ other

BS EN558-1 Series 10 Conforms to BS5152
CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +230°C

Description

ANSI 125 Cast Iron Globe Valve. Conforms to ASME B16.10 & MSS SP-85.

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125 (B16.1)

Pressure

13.8 Bar Rated

Temperature

-10°C to +230°C

Description

Cast Iron PN16 Flanged Swing Check Valve. Bronze Trim

Stock Availability

Sizes 14"+ subject to factory lead time.

Connection

Flanged PN16

Approvals/ other

BS EN12334 (BS 5153)
CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Cast Iron Swing Check Valve

Connection

Flange Mounting to PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

ANSI Cast Iron Flanged Swing Check Valve. Conforms to ASME B16.10 and MSS SP-71.

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125 (B16.1)

Pressure

13.8 Bar Rated

Temperature

-10°C to +230°C

Description

Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.

Connection

Universal flange mounting to suit BS EN 1092 PN10/PN16 and ANSI B16.1 Class 125

Approvals/ other

CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +120°C

Description

Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.

Stock Availability

Subject to factory lead time.

Connection

Flange mounting to suit BS EN 1092 PN16 only

Pressure

16 Bar Rated

Temperature

-10°C to +120°C

Description

Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.

Stock Availability

Subject to factory lead time.

Connection

Flange mounting to suit ANSI B16.1 Class 125

Pressure

13.8 Bar Rated

Temperature

-10°C to +120°C

Description

Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.

Connection

Universal flange mounting to suit BS EN1092 PN10 / PN16 and ANSI B16.1 Class 125

Pressure

16 Bar Rated

Temperature

-10°C to 120°C
-10°C to +85°C (WRAS Applications)

Description

PN16 Cast Iron Swing Check Valve, Lever & Weight

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN16 Only

Pressure

16 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Cast Iron Swing Check Valve, Lever & Weight

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting to PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

ANSI Cast Iron Swing Check Valve, Lever & Weight

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125 (B16.1)

Pressure

13.8 Bar Rated

Temperature

-10°C to +230°C

Description

PN16 Cast Iron 'Y' Strainer. BS EN 558-1 Series 1. DN50 & DN65 square drain port. DN80 - DN600 circular drain port. Fusion bonded Epoxy coat finish.

Stock Availability

Sizes DN350+ are subject to factory lead time.

Connection

Flange Mounting PN16 Only

Approvals/ other

DN50-DN300 WRAS Approved
DN350-DN600 WRAS Approved Coating

Pressure

16 Bar Rated

Temperature

-10°C to +85°C

Description

Cast Iron PN16 Flanged 'Y' Type Strainer. Stainless Steel Screen 1.5mm. DN50 & DN65 square drain port. DN80 - DN600 circular drain port.

Stock Availability

Sizes DN350+ are subject to factory lead time.

Connection

Flanged PN16 - Conforms to BS EN1092 PN16

Approvals/ other

CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +230°C

Description

Flanged ANSI 125 Cast Iron 'Y' Strainer.

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125

Pressure

13.8 Bar Rated

Temperature

-10°C to +232°C

Description

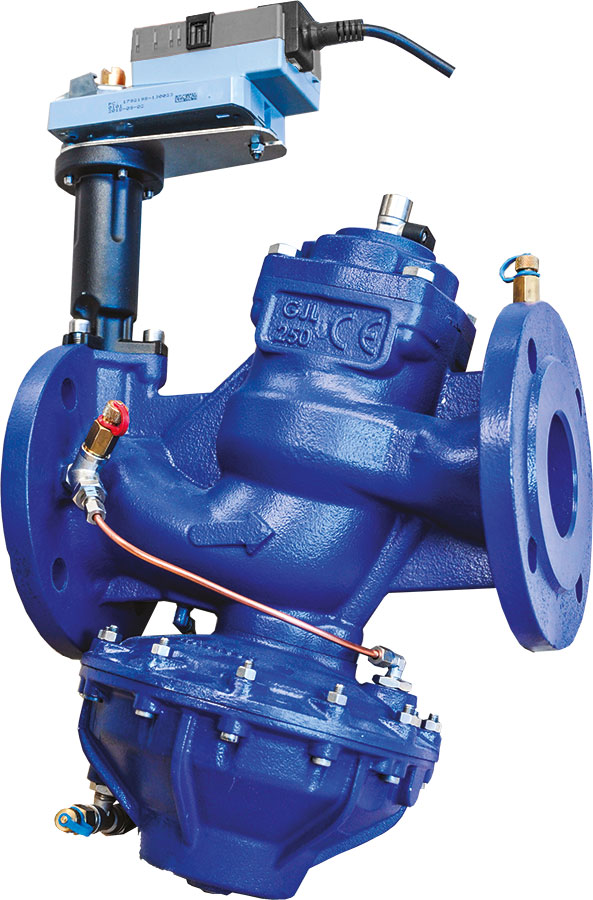

Differential Pressure Control Valve (DPCV)

Connection

PN16 Flanged

Pressure

16 Bar Rated

Temperature

-10°C to +120°C

Description

3 Port Flanged Rotary Mixing Valve. Cast Iron body and plug. Manual or Actuated Operation. Suitable fluids: Water, glycol water (max 30%).

Connection

Flanged ISO 7005

Pressure

Max 6 Bar (PN6)

Temperature

-10°C to +110°C

Description

Fixed Orifice Regulating Wafer Butterfly Valve. Position Indicator. Fixed orifice with ±5% flow measurement accuracy. Supplied with 2 extended test points. Gearbox has multiple lockable positions. The ART 2115GB consists of an ART 115 Butterfly Valve coupled to a Fixed Orifice Flanged Metering Station to form a fixed orifice commissioning set with regulation and isolation capabilities. Supplied fully assembled.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN16 only.

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Fixed Orifice Regulating Lugged and Tapped Butterfly Valve. Position Indicator. Fixed orifice with ±5% flow measurement accuracy. Supplied with 2 extended test points. Gearbox has multiple lockable positions. The ART 2135GB consists of an ART 135 Butterfly Valve coupled to a Fixed Orifice Flanged Metering Station to form a fixed orifice commissioning set with regulation and isolation capabilities. Supplied fully assembled.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN16 only.

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

PN16 Cast Iron Suction Diffuser. Designed for suction side of pump installations. Prevents debris and foreign materials entering the pump. Low pressure drop. Available flanged PN25.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN1092 PN16
Available with reduced and equal inlet / outlets

Pressure

16 Bar Rated

Temperature

-20°C to +120°

Description

ANSI 125 Cast Iron Suction Diffuser. Designed for suction side of pump installations. Prevents debris and foreign materials entering the pump. Low pressure drop.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to ANSI 125 (B16.1)
Available with reduced and equal inlet / outlets.

Pressure

13.8 Bar Rated

Temperature

-20°C to +120°C

Description

PN16 Cast Iron Triple Duty Valve. Combines three functions in one valve. Isolation, flow regulation and a spring check valve. Position indicator. Designed for discharge side of pump installations. Available flanged PN25.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN1092 PN16

Pressure

16 Bar

Temperature

-20°C to +120°C

Description

ANSI 125 Cast Iron Triple Duty Valve. Combines three functions in one valve. Isolation, flow regulation and a spring check valve. Position indicator. Designed for discharge side of pump installations.

Stock Availability

Subject to factory lead time.

Connection

Flanged ANSI 125 (B16.1)

Pressure

13.8 Bar

Temperature

-20°C to +120°C

Description

Cast Iron High Discharge Safety Valve. Fitted with bellows to protect moving parts.

Stock Availability

Subject to factory lead time.

Connection

Flange connection to BS EN1092

Approvals/ other

CE Approved

Pressure

Set Pressure 0.5 to 25 Bar

Temperature

-10°C to +120°C

Description

PN16 Cast Iron Pressure Reducing Valve. Suitable for liquids. Adjustment dial for setting without operating pressure; bonnet can be positionable. Conforms to BS EN 1567. Supplied with pressure gauges.

Connection

Flange conforms to BS EN 1092-2

Pressure

Max Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 - 7 Bar
Low pressure (Inlet: 8 Bar. Outlet: 0.5-3 Bar) & High pressure (Inlet: 16 Bar. Outlet: 3-12 Bar) versions available on request.

Temperature

+5°C to +65°C

Description

PN25 Cast Iron Pressure Reducing Valve. Suitable for liquids. Adjustment dial for setting without operating pressure; bonnet can be positionable. Conforms to BS EN 1567. Supplied with pressure gauges.

Stock Availability

Subject to factory lead time.

Connection

Flange conforms to BS EN 1092-2

Pressure

Max Inlet Pressure: 25 Bar Outlet Pressure: 1.5 - 7 Bar High pressure (3-12 Bar) version available on request.

Temperature

+5°C to +65°C
