Ball Valves
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")
Temperature
Liquids
-20°C to +140°C
Gas
-20°C to +60°C -
Description
PN40 Brass Ball Valve complete with Locking Lever. Full bore.
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated
Gas
5 Bar RatedTemperature
Liquids -20°C to +140°C
Gas
-20°C to +60°C -
Description

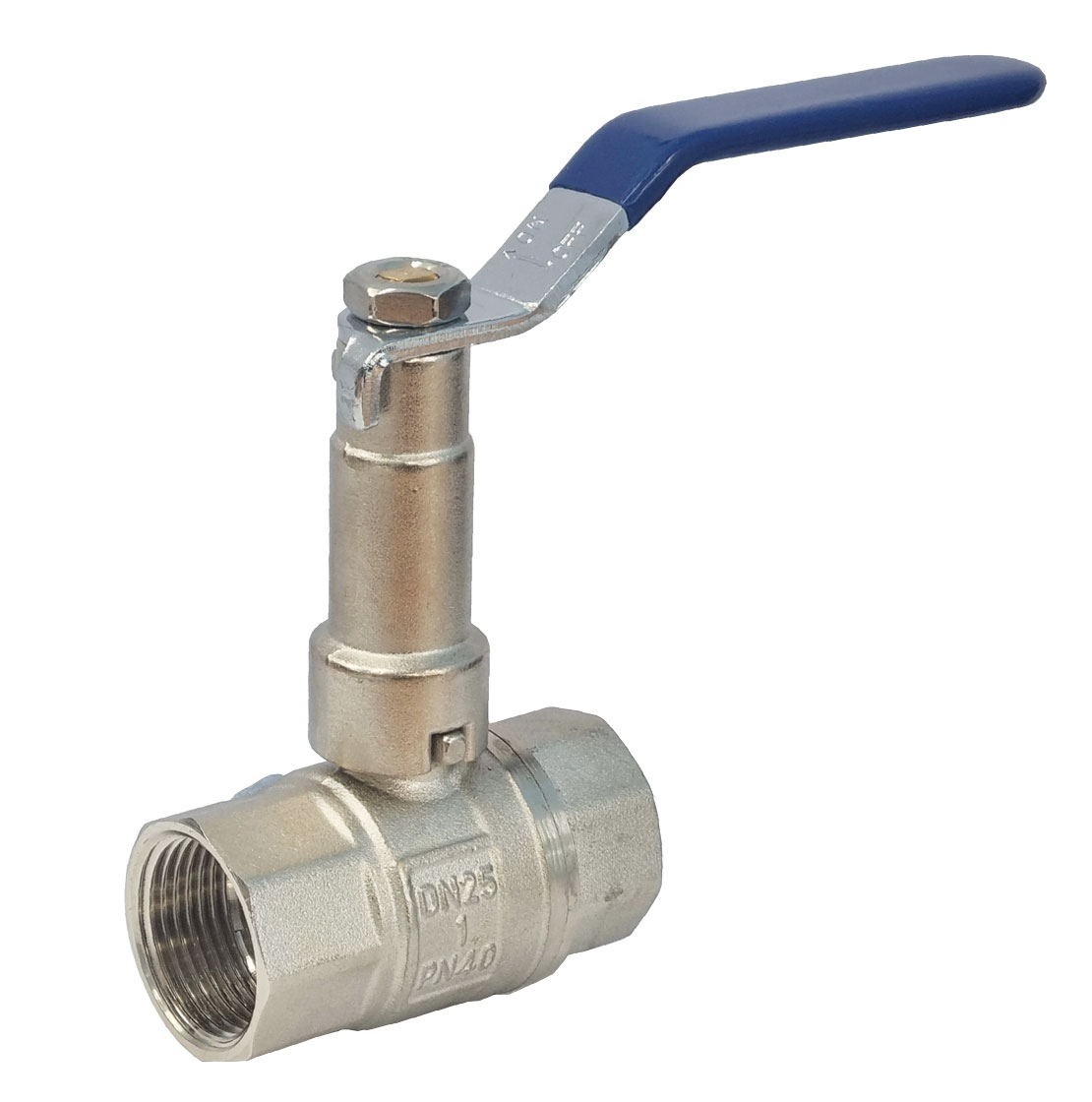

PN40 Brass Ball Valve complete with Thermal Extension. Full bore.
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated Gas
5 Bar RatedTemperature
Liquids -20°C to +140°C Gas -20°C to +60°C
-
Description
2 Piece Brass Ball Valve. Full Bore. Tee Handles available in red, yellow, and blue.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids 40 Bar Rated (¼" to 1") Gas 5 Bar Rated (¼" to 1")
Temperature
Liquids -20°C to +140°C Gas -20°C to +60°C
-
Description
2 Piece DZR Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to +130°C
-
Description
2 Piece DZR Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
40 Bar Rated
Temperature
-20°C to +130°C
-
Description
Connection
Compression Ends
Approvals/ other
CE, WRAS Approved & EN331 Gas
Pressure
25 Bar Rated - Liquids 5 Bar Rated - Gas
Temperature
-10°C to +110°C - Liquids -10°C to +60°C - Gas
-
Description
DZR Brass Ball Valve. Full Bore.
Connection
Compression Ends (BS EN 1254-2 (1998))
Approvals/ other
Pressure
25 Bar Rated
Temperature
-10°C to +110°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")Temperature
Liquids
-20°C to +140°C
Gas
-20°C to +60°C -
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
NPT F/F Ends (ANSI B1.20.1)
Approvals/ other
CE Approved
WRAS ApprovedPressure
40 Bar Rated (¼" - 2")
25 Bar Rated (2½" - 4")Temperature
-20°C to +140°C
-
Description
Connection
BSP Parallel M/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to 140°C
-
Description
Connection
BSP Parallel M/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to 140°C
-
Description
Locking Device to suit ART 40, 41, 50, 59 & 89 ball valves
Connection
To suit ART 40, 41, 50, 59 & 89
Approvals/ other
Please refer to product catalogue for further information
-
Description
Tee Handle to suit ART 40, 41, 50, 59 and 89. Available in red, yellow, and blue.
Connection
To suit ART 40, 41, 50, 59 and 89.
-
Description
Extended Tee Handle to suit ART 40, 41, 50, 59 and 89 ball valve series
Connection
To suit ART 40, 41, 50, 59 and 89
Approvals/ other
Please refer to product catalogue for further information
-
Description

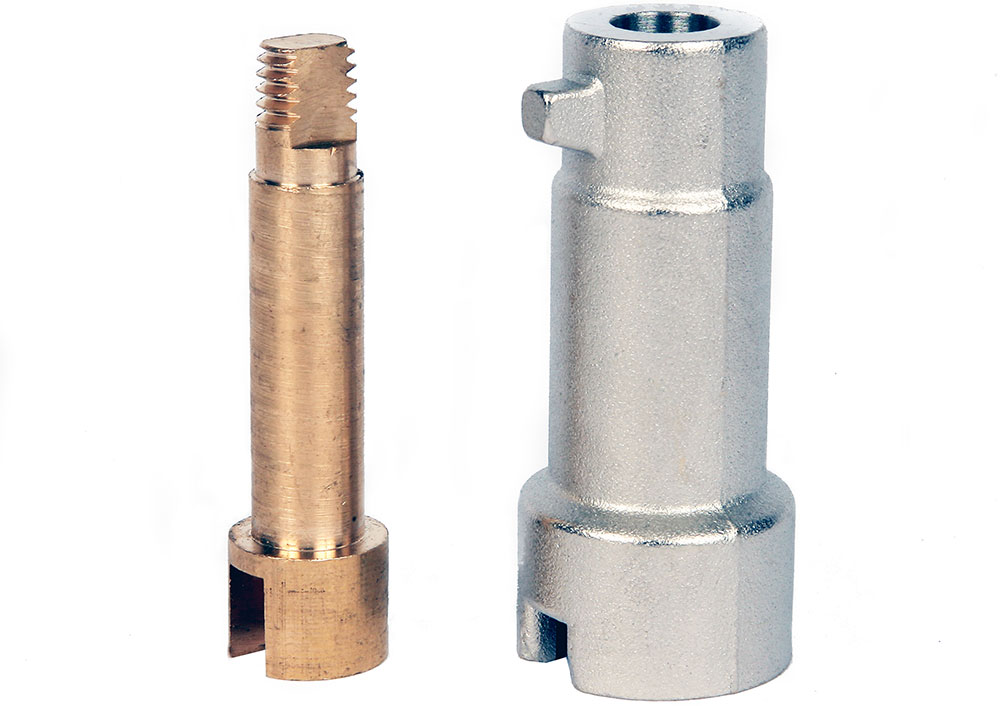

Thermal Extension to suit ART 40, 41, 50, 59 & 89 ball valves.
Connection
To suit ART 40, 50, 59 & 89
Approvals/ other
Please refer to product catalogue for further information
-
Description
Thermal Extension to suit ART 40, 41, 50, 59, & 89 ball valves.
Connection
To suit ART 40, 41, 50, 59, & 89.
-
Description
DZR Brass Ball valve. Full Bore. Thermal extension available. 5 year warranty.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M & V Profiles 42mm & 54mmApprovals/ other
CE Approved
WRAS ApprovedPressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-20°C to +140°C
-
Description
Thermal extension for ART 55PRS
Approvals/ other
Please refer to product catalogue for further information
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
32 Bar Rated (¼" to 1") 25 Bar Rated (1¼" to 2") 16 Bar Rated (2½" to 4")
Temperature
-5°C to +110°C
-
Description
Connection
Compression ends in accordance with BS EN1254-2
Approvals/ other
WRAS Approved
Pressure
10 Bar
Temperature
-20°C to +85°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved & EN331 Gas Approved
Pressure
See datasheet for full details
Temperature
See datasheet for full details
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F End (ISO 7/1)
Approvals/ other
WRAS Approved & EN331 Gas Approved
Pressure
See datasheet for full details
Temperature
See datasheet for full details
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
NPT F/F Ends (ANSI B1.20.1)
Pressure
40 Bar Rated
Temperature
-20°C to +150°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel M/F Ends (ISO 228/1)
Approvals/ other
Pressure
40 Bar Rated
Temperature
-20°C to +150°C
-
Description
Connection
To suit ART 45
Approvals/ other
Please refer to product catalogue for further information
-
Description
Connection
To suit Art 45
Approvals/ other
Please refer to product catalogue for further information
-
Description
2 Piece Brass Ball Valve. Full Bore.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel M/M Ends (ISO 228/1)
Approvals/ other
Pressure
40 Bar Rated
Temperature
-20°C to +150°C
-
Description
Brass Ball Valve. Full Bore. ISO 5211 Direct Mount.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated (¼" - 1") 32 Bar Rated (1¼") 30 Bar Rated (1½" - 2½") 25 Bar Rated (3")
Temperature
-20°C to +120°C
-
Description
3 Way 'L' Port Brass Ball Valve. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Pressure
32 Bar Rated (¼" - 1") 25 Bar Rated (1¼" - 2")
Temperature
-20°C to +150°C
-
Description
3 Way 'T' Port Brass Ball Valve. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Pressure
32 Bar Rated (¼" - 1") 25 Bar Rated (1¼" - 2").
Temperature
-20°C to +150°C
-
Description
3 Way 'T' Port Brass Ball Valve. PTFE Seals. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Approvals/ other
ISO Direct Mount CE Approved
Pressure
30 Bar Rated (¼" - ¾") 20 Bar Rated (1 - 1¼") 16 Bar Rated (1½" - 2")
Temperature
-20°C to +120°C
-
Description
3 Way 'L' Port Brass Ball Valve. PTFE Seals. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Approvals/ other
ISO Direct Mount CE Approved
Pressure
30 Bar Rated (¼" - ¾") 20 Bar Rated (1" - 1¼") 16 Bar Rated (1½" - 2")
Temperature
-20°C to +120°C
-
Description
1 Piece Stainless Steel Ball Valve. Reduced Bore. PTFE Seals. Locking lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
69 Bar Rated (¼" - 1¼") 55 Bar Rated (1½" - 2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1")
69 Bar Rated (1¼" - 1½")
62 Bar Rated (2")Temperature
-25°C to +200°C
-
Description
2 Piece Stainess Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
NPT F/F Ends (ANSI B1.20.1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Device. ATEX Approved.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
ATEX Approved.
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
Stainless Steel 2 piece ball valve. Full Bore. PTFE Seals. Locking device. ATEX Approved.
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
ATEX Approved
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Device. ATEX Approved.
Connection
NPT F/F Ends (ANSI B 1.20.1)
Approvals/ other
ATEX Approved.
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Approvals/ other
Pressure
82 Bar Rated (1/4" - 1") 69 Bar Rated (1.1/4" - 1.1/2") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
Socket Weld Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Carbon Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever. ISO5211 Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated 2" - 4")
Temperature
-25°C to +200°C
-
DN76+ subject to factory lead time.
Description
Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.
Stock Availability
DN76+ subject to factory lead time.
Connection
Press
Pressure
24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm -54mm), 10 Bar (76mm - 108mm)
Temperature
-20°C to +120°C
-
Description
Connection
Taper F/F Ends (ISO 7/1)
Approvals/ other
Atex Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar
Temperature
-25°C to +200°C
-
Description
Connection
NPT F/F Ends (ANSI B 1.20.1)
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar Rated
Temperature
-25°C to +200°C.
-
Description
Connection
Flanged PN16/40
Approvals/ other
Pressure
40 Bar Rated (½" - 2") 16 Bar Rated (2½" - 8")
Temperature
-25°C to +200°C (½" to 4") -25°C to +180°C (5" to 8")
-
Description
Connection
Flanged PN16
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
40 Bar Rated (½-2") 16 Bar Rated (2½- 4")
Temperature
-25°C to +200°C
-
Description
Connection
Flange Mounting ANSI Class 150 (B16.5)
Approvals/ other
Pressure
20 Bar Rated
Temperature
-25°C to +200°C
-
Description
Connection
Flange Mounting ANSI Class 150 (B16.5)
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
20 Bar Rated.
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'T' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'L' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
Connection
Flanged Ends
Pressure
Up to 16 Bar.
Temperature
-10°C to +150°C
-
Description
Connection
Flange Mounting PN16 Only
Pressure
Up to 16 Bar
Temperature
-20°C to +150°C
-

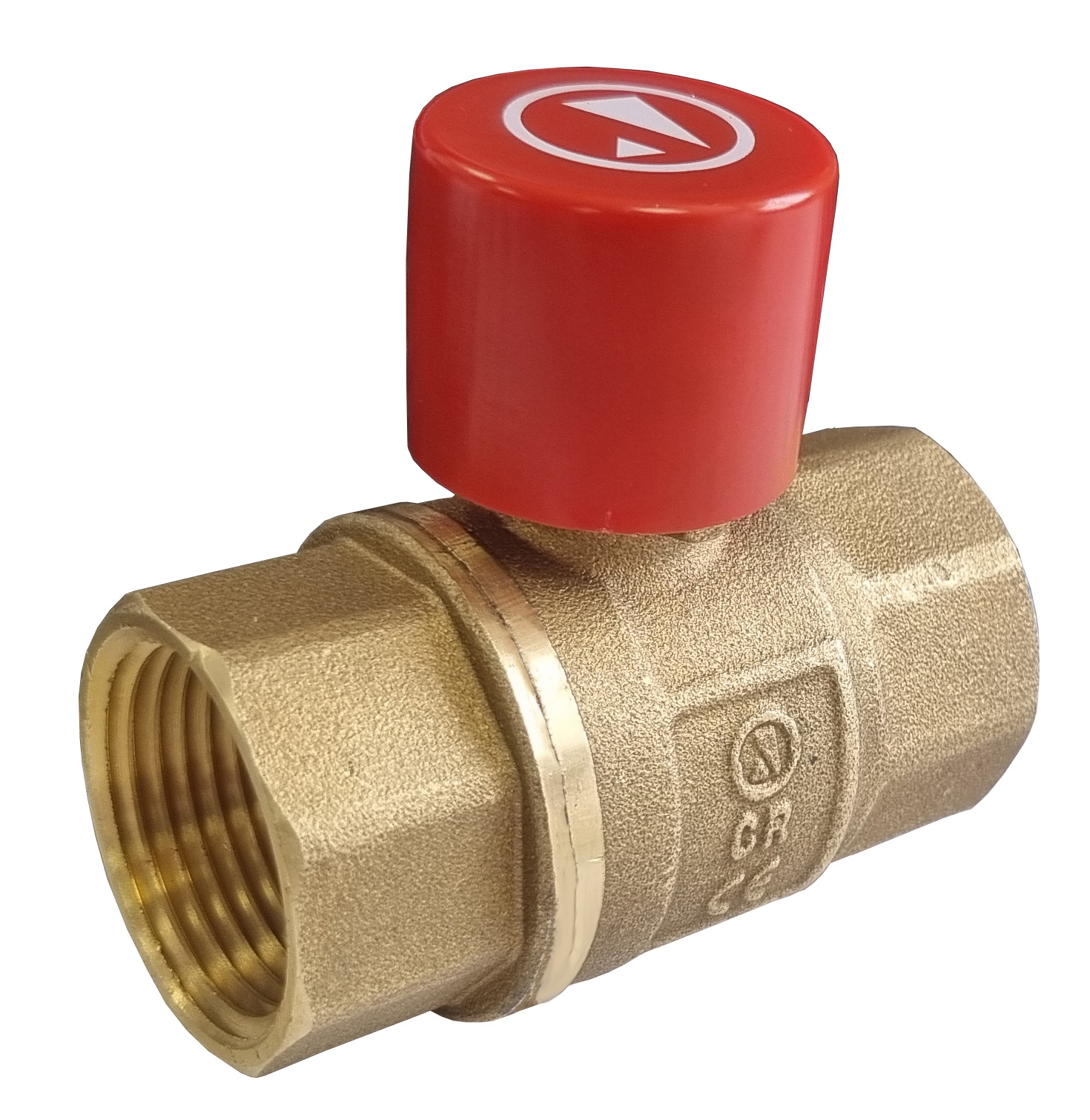

Description
2 Piece Bronze Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE & WRAS Approved
Pressure
40 Bar Rated
Temperature
-10°C to +140°C
-
PN40 Bronze Ball Valve. Bronze Body. Full Bore. Blow Out Proof Stem. MSS-SP-110. Read More
Not stocked in the UK.
Description
PN40 Bronze Ball Valve. Bronze Body. Full Bore. Blow Out Proof Stem. MSS-SP-110.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-10°C to +140°C
-
Description
ABS Industrial Double Union Ball Valve. EPDM Seals.
Connection
Solvent Weld Ends
Pressure
15 Bar Rated (3⁄8" to 2") 9 Bar Rated (2½" to 4")
Temperature
-20°C to +80°C
-
Description
ABS Industrial Double Union Ball Valve. FPM (Viton) Seals
Connection
Solvent Weld Ends
Pressure
15 Bar Rated (3⁄8" to 2") 9 Bar Rated (2½" to 4")
Temperature
-20°C to +80°C
-
Description
ABS Industrial Double Union Ball Valve. EPDM Seals
Connection
Solvent Weld Ends
Pressure
15 Bar Rated (½" - 2") 9 Bar Rated (2½" -4")
Temperature
-20°C to +80°C
-
Description

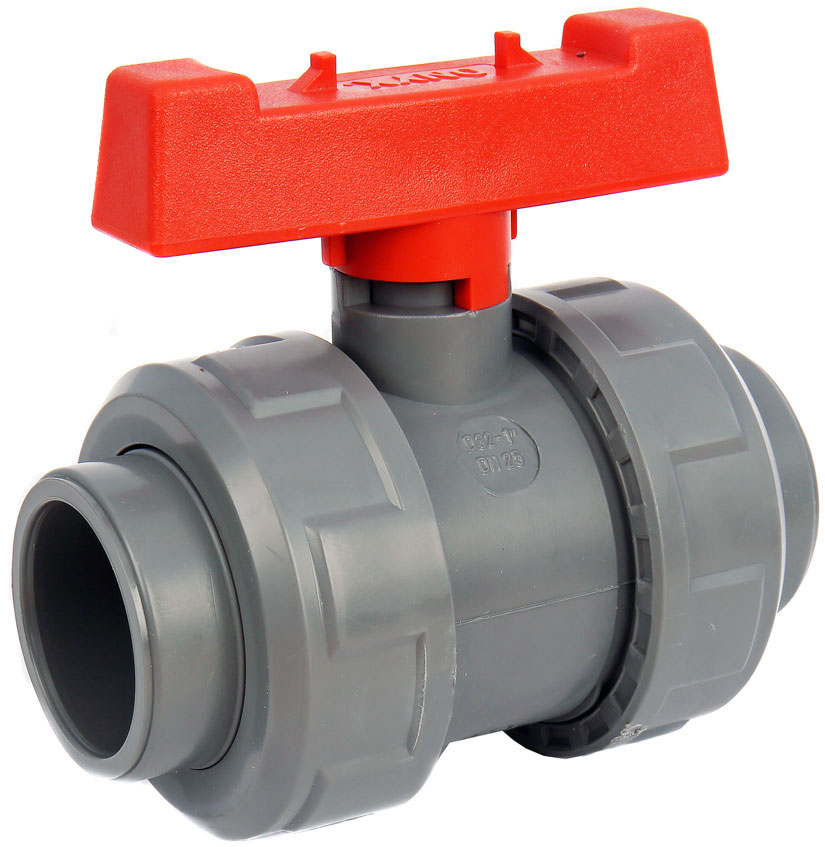

PVC Industrial Double Union Ball Valve. EPDM Seals
Connection
Solvent Weld Ends
Pressure
16 Bar Rated (3⁄8" to 2") 10 Bar Rated (2½" to 4")
Temperature
0°C to +60°C
-
Description
PVC Industrial Double Union Ball Valve. FPM (Viton) Seals.
Connection
Solvent Weld Ends
Pressure
16 Bar Rated (3⁄8" to 2") 10 Bar Rated (2½" to 4")
Temperature
0°C to +60°C
-
Description
PVC Double Union Ball Valve. EPDM Seals.
Connection
Solvent Weld Ends
Pressure
16 Bar Rated (3⁄8" to 2") 10 Bar Rated (2½" to 4")
Temperature
0°C to +60°C
-
Description
PVC Double Union Ball Valve. EPDM Seals.
Connection
BSP Parallel Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
-
Description
PVC Single Union Ball Valve EPDM Seals.
Connection
Solvent Weld Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
-
Description
PVC Single Union Ball Valves. EPDM Seals.
Connection
BSP Parallel Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
-
Description
PVC 3 Way Ball Valves 'L' Port. EPDM Seals.
Connection
Solvent Weld Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
-
Description
PVC Industrial Double Union 3 Way Ball Valves 'T' Port. EPDM Seals.
Connection
Solvent Weld Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
-
Description
PVC 3 Way Ball Valves 'L' Port. EPDM Seals.
Connection
BSP Parallel Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
-
Description
PVC 3 Way Ball Valves 'T' Port. EPDM Seals.
Connection
BSP Parallel Ends
Pressure
10 Bar Rated
Temperature
0°C to +60°C
