21-30 Bar Rated

Description

2 Piece Brass Ball Valve. Full Bore.

Connection

BSP Parallel F/F Ends (ISO 228/1)

Approvals/ other

CE, WRAS, EN331 Gas

Pressure

Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")

Temperature

Liquids
-20°C to +140°C
Gas
-20°C to +60°C

Description

Brass Ball Valve. Full Bore.

Connection

Compression Ends

Approvals/ other

CE, WRAS Approved & EN331 Gas

Pressure

25 Bar Rated - Liquids 5 Bar Rated - Gas

Temperature

-20°C to +110°C - Liquids -20°C to +60°C - Gas

Description

2 Piece Brass Ball Valve. Full Bore.

Connection

BSP Taper F/F Ends (ISO 7/1)

Approvals/ other

CE, WRAS, EN331 Gas

Pressure

Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")

Temperature

Liquids
-20°C to +140°C
Gas
-20°C to +60°C

Description

DZR Brass Ball valve. Full Bore. Thermal extension available. 5 year warranty.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M & V Profiles 42mm & 54mm

Approvals/ other

CE Approved
WRAS Approved

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

-20°C to +140°C

Description

2 Piece Brass Ball Valve. Full Bore.

Connection

BSP Parallel F/F Ends (ISO 228/1)

Approvals/ other

WRAS Approved

Pressure

32 Bar Rated (¼" to 1") 25 Bar Rated (1¼" to 2") 16 Bar Rated (2½" to 4")

Temperature

-5°C to +110°C

Description

Brass Ball Valve. Full Bore. ISO 5211 Direct Mount.

Connection

BSP Parallel F/F Ends (ISO 228/1)

Approvals/ other

WRAS Approved

Pressure

40 Bar Rated (¼" - 1") 32 Bar Rated (1¼") 30 Bar Rated (1½" - 2½") 25 Bar Rated (3")

Temperature

-20°C to +120°C

Description

3 Way 'L' Port Brass Ball Valve. Reduced Bore.

Connection

BSP Parallel Female Ends (ISO 228/1)

Pressure

32 Bar Rated (¼" - 1") 25 Bar Rated (1¼" - 2")

Temperature

-20°C to +150°C

Description

3 Way 'T' Port Brass Ball Valve. Reduced Bore.

Connection

BSP Parallel Female Ends (ISO 228/1)

Pressure

32 Bar Rated (¼" - 1") 25 Bar Rated (1¼" - 2").

Temperature

-20°C to +150°C

Description

3 Way 'T' Port Brass Ball Valve. PTFE Seals. Reduced Bore.

Connection

BSP Parallel Female Ends (ISO 228/1)

Approvals/ other

ISO Direct Mount CE Approved

Pressure

30 Bar Rated (¼" - ¾") 20 Bar Rated (1 - 1¼") 16 Bar Rated (1½" - 2")

Temperature

-20°C to +120°C

Description

3 Way 'L' Port Brass Ball Valve. PTFE Seals. Reduced Bore.

Connection

BSP Parallel Female Ends (ISO 228/1)

Approvals/ other

ISO Direct Mount CE Approved

Pressure

30 Bar Rated (¼" - ¾") 20 Bar Rated (1" - 1¼") 16 Bar Rated (1½" - 2")

Temperature

-20°C to +120°C

Description

Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.

Stock Availability

DN76+ subject to factory lead time.

Connection

Press

Pressure

24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm -54mm), 10 Bar (76mm - 108mm)

Temperature

-20°C to +120°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 6". EPDM Liner. Stainless Steel Disc. ISO Top. To suit PN25 Flanges only. Gearbox available.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated.

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc. ISO Top.

Stock Availability

Subject to factory lead time.

Connection

Flange mounting PN25 only

Pressure

25 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 6". EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 6". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated.

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Nickel Plated Ductile Iron disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Nickel Plated Ductile Iron disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 6". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Brass Gate Valve. Full Bore.

Connection

BSP Taper F/F Ends (ISO 7/1)

Approvals/ other

BS 5154 Approved & Kite Marked

Pressure

25 Bar Rated

Temperature

-10°C to +186°C

Description

PN25 Cast Iron Gate Valve. Non rising stem.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Cast Iron Rising Stem Gate Valve

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Ductile Iron Resilient Seat Gate Valve. BS5163, Type B cover and stem. Internally and externally fusion bonded epoxy coated WRAS approved.

Stock Availability

Subject to factory lead time.

Connection

Flange mounting to EN1092-2 PN25

Pressure

25 Bar Rated

Temperature

0°C to +80°C

Description

PN25 Cast Iron Swing Check Valve

Connection

Flange Mounting to PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Cast Iron Swing Check Valve, Lever & Weight

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting to PN25 Only

Pressure

25 Bar Rated

Temperature

-10°C to +230°C

Description

PN25 Ductile Iron Swing Check Valve, Lever, Weight and Damper. Flange mounting PN25 only. Face to face conforms with DIN 3202 F6. Fusion bonded Epoxy coated finish.

Stock Availability

Subject to factory lead time.

Connection

Flanged - Conforms to BS EN1092 PN25

Pressure

25 Bar Rated

Temperature

-10°C to +80°C

Description

PN25 Ductile Iron "Y" Strainer.

Stock Availability

Sizes 14"+ subject to factory lead time.

Connection

Flange Mounting PN25 Only.

Pressure

25 Bar Rated.

Temperature

-10°C to +230°C

Description

DZR Brass Ball Valve. Full Bore. Thermal extension available. 5 year warranty.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M & V Profile 42mm & 54mm

Approvals/ other

CE Approved
WRAS Approved

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

-20°C to +140°C

Description

DZR Fixed Orifice Double Regulating Valve (FODRV). Handwheel with shut off function and clear 360° reading. Digital scale with lock function. Fixed orifice with ± 5% flow measurement accuracy. Conforms to BS 5154.

Stock Availability

Sizes 15L and 15ML subject to factory lead time.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mm

Approvals/ other

5 year warranty

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

0°C to +120°C

Description

DZR Double Regulating Valve (DRV). Handwheel with shut off function and clear 360° reading. Digital scale with lock function.

Stock Availability

Size 15L is subject to a factory lead time.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mm

Approvals/ other

5 year warranty

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

-10°C to +120°C

Description

DZR Fixed Orifice Double Regulating Valve (FODRV). Conforms to BS 5154. Fixed orifice with ±5% flow measurement accuracy

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mm

Approvals/ other

5 Year Guarantee

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

-10°C to +120°C

Description

Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.

Stock Availability

DN76+ subject to factory lead time.

Connection

Press

Pressure

24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm - 54mm), 10 Bar (76mm - 108mm)

Temperature

-20°C to +120°C

Description

DZR Fixed Orifice Double Regulating Valve. Handwheel with shut off function and clear 360° reading. Digital scale with lock function. Conforms to BS 5154.

Connection

BSP Parallel (ISO 228 Threads) F/F Ends

Approvals/ other

WRAS Approved

Pressure

25 Bar

Temperature

-10°C to +120°C

Description

DZR Fixed Orifice Double Regulating Valve (FODRV). Handwheel with shut off function and clear 360° reading. Digital scale with lock function. Fixed orifice with ± 5% flow measurement accuracy. Conforms to BS 5154.

Stock Availability

Sizes 15L and 15ML subject to factory lead time.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mm

Approvals/ other

5 year warranty

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

0°C to +120°C

Description

DZR Double Regulating Valve (DRV)

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

WRAS Approved

Pressure

Up to 25 Bar.

Temperature

-10°C to +120°C

Description

DZR Double Regulating Valve (DRV). Handwheel with shut off function and clear 360° reading. Digital scale with lock function.

Stock Availability

Size 15L is subject to a factory lead time.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mm

Approvals/ other

5 year warranty

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

-10°C to +120°C

Description

DZR Brass Fixed Orifice Double Regulating Valve. EPDM Seat

Connection

BSP Parallel F/F Ends (ISO 7/1)

Approvals/ other

5 Year Guarantee

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

DZR Brass Fixed Orifice Double Regulating Valve. EPDM Seat. Conforms to BS 5154.

Connection

Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mm

Approvals/ other

5 Year Guarantee

Pressure

24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)

Temperature

-10°C to +120°C

Description

DZR Brass Variable Orifice Double Regulating Valve. EPDM Seat. Conforms to BS 7350 / BS 5154.

Connection

BSP Parallel F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)

Approvals/ other

WRAS Approved
5 Year Guarantee

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

PN25 Ductile Iron Double Regulating Valve (DRV)

Stock Availability

DN250 & DN300 subject to factory lead time.

Connection

Flanged Mounting PN25 Only

Pressure

25 Bar Rated

Temperature

-20°C to +120°C

Description

PN25 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points.

Connection

Wafer pattern. Fits between BS EN1092 flanges PN25

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

Thermostatic Balancing Valve with Anti Legionella Device. WRAS Approved. Fluid: Water. Automatic legionella disinfectant feature. Improves efficiency of DHW systems. Automatic regulation. Reduces heat loss through lower circulation of hot water. Helps to keep temperature evenly distributed and reduces dead-legs.

Connection

BSP Parallel (ISO 7/1)

Approvals/ other

WRAS Approved

Pressure

Max working pressure (Static): 25 Bar

Temperature

Working temperature: 40°C to 60°C
Max Inlet temperature: 90°C
Anti Legionella temperature: 70°C

Description

DZR Pressure Independent Control & Balancing Valve (PICV). Union Tail Pieces & Gaskets required (2 per valve for BSP male connection)

Connection

Screwed BSP Parallel (ISO 228/1)

Approvals/ other

5 Year Guarantee

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

DZR Pressure Independent Control and Balancing Valve (PICV)

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

5 Year Guarantee

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

2 Piece Union & gasket to suit ART 20C Valves DN10-25 2 required per ART 20C

Description

DZR Automatic Flow Balancing Valve

Stock Availability

Subject to factory lead time.

Connection

Threaded BSP Parallel (ISO 7/1)

Approvals/ other

5 Year Guarantee

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

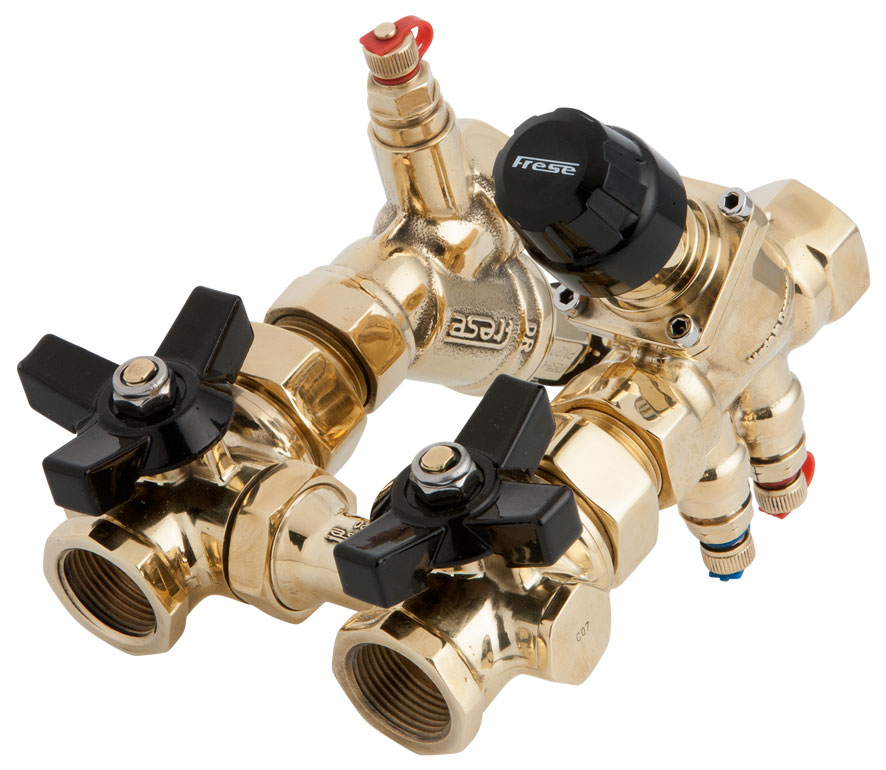

H Block complete with PICV and Strainer. For heating and cooling applications at 80mm centres. Optional integral Venturi metering station. Left and right hand versions available.

Pressure

Max Pressure: 25 Bar Maximum Differential Pressure: 800kPa (8 Bar)

Temperature

0°C to +120°C

Description

H Block complete with FODRV. For heating and cooling applications at 80mm centres.

Pressure

Max Pressure: 25 Bar Maximum Differential Pressure: 800kPa (8 Bar)

Temperature

0°C to +120°C

Description

DZR Brass H Block with ART 25. Tested in accordance with EN12266-1:2012. 5 year guarantee.

Connection

Screwed BSP Connections.

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

DZR Brass H Block with ART 20C PICV. Tested in accordance with EN12266-1:2012. Flow modulation along with whole control actuator stroke (ART C21V, C22V, C23E). 5 year guarantee.

Connection

Screwed BSP Connections.

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

DZR Brass H Block with ART 20 PICV. Tested in accordance with EN12266-1:2012. Flow modulation along whole control actuator stroke (C21V, C22V, C23E). 5 year guarantee.

Connection

Screwed BSP Connections.

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

DZR Brass H Block with ART 22. Tested in accordance with EN12266-1:2012. 5 year guarantee.

Connection

Screwed BSP Connections.

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

DZR Brass H Block with ART 26 and ART 27. Tested in accordance with EN12266-1:2012. 5 year guarantee.

Connection

Screwed BSP Connections.

Pressure

25 Bar Rated

Temperature

-10°C to +120°C

Description

Cast Iron High Discharge Safety Valve. Fitted with bellows to protect moving parts.

Stock Availability

Subject to factory lead time.

Connection

Flange connection to BS EN1092

Approvals/ other

CE Approved

Pressure

Set Pressure 0.5 to 25 Bar

Temperature

-10°C to +120°C

Description

Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request)

Connection

BSP Taper (ISO 7/1) M/M Ends

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)

Temperature

+5°C to +85°C

Description

PN25 Cast Iron Pressure Reducing Valve. Suitable for liquids. Adjustment dial for setting without operating pressure; bonnet can be positionable. Conforms to BS EN 1567. Supplied with pressure gauges.

Stock Availability

Subject to factory lead time.

Connection

Flange conforms to BS EN 1092-2

Pressure

Max Inlet Pressure: 25 Bar Outlet Pressure: 1.5 - 7 Bar High pressure (3-12 Bar) version available on request.

Temperature

+5°C to +65°C

Description

Stainless Steel Pressure Reducing Valve. EPDM Seal.

Stock Availability

Subject to factory lead time.

Connection

BSP Taper M/M Ends (ISO 7/1)

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-10°C to +95°C

Description

Stainless Steel Pressure Reducing Valve. EPDM Seal.

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel F/F Ends (ISO 228/1)

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-10°C to +95°C

Description

PN25 Adjustable Pressure Reducing Valve. Automatic control valve. WRAS approved epoxy coating and polymers. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Available flanged PN16. Stainless Steel pilot tubing and valves.

Connection

Flange - Conforms to BS EN 1092 PN25

Pressure

25 Bar Rated

Temperature

0°C to +80°C

Description

PN25 Adjustable Pressure Relief / Sustaining Valve. Automatic Control Valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN558-1 Series 1. Stainless Steel pilot tubing and valves. Also available flanged PN16.

Stock Availability

Subject to factory lead time.

Connection

Flanged conforms to BS EN1092 PN25.

Pressure

25 Bar Rated

Temperature

0°C to +80°C

Description

Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU.

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel Female (ISO 228/1)

Pressure

Up to 70 Bar Rated.

Temperature

-60°C to +225°C

Description

Brass Atmospheric Discharge Safety Valve. PTFE Seal.

Stock Availability

Subject to factory lead time.

Connection

Male BSP Parallel (ISO 228)

Approvals/ other

Complies to PED 2014/68/EU

Pressure

Set pressure: 0.2 to 50 bar

Temperature

-60°C to +225°C

Description

Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request)

Connection

BSP Taper (ISO 7/1) M/M Ends

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)

Temperature

+5°C to +85°C

Description

Thermostatic Balancing Valve with Anti Legionella Device. WRAS Approved. Fluid: Water. Automatic legionella disinfectant feature. Improves efficiency of DHW systems. Automatic regulation. Reduces heat loss through lower circulation of hot water. Helps to keep temperature evenly distributed and reduces dead-legs.

Connection

BSP Parallel (ISO 7/1)

Approvals/ other

WRAS Approved

Pressure

Max working pressure (Static): 25 Bar

Temperature

Working temperature: 40°C to 60°C
Max Inlet temperature: 90°C
Anti Legionella temperature: 70°C

Description

PN25 Flanged Flexible Connector. EPDM Body.

Stock Availability

Subject to factory lead time.

Connection

Flanged PN25

Pressure

25 Bar Rated

Temperature

-20°C to +100°C

Description

PN25 Flanged Flexible Connector. NBR Body.

Stock Availability

Subject to factory lead time.

Connection

Flanged PN25

Pressure

25 Bar Rated

Temperature

-20°C to +80°C
